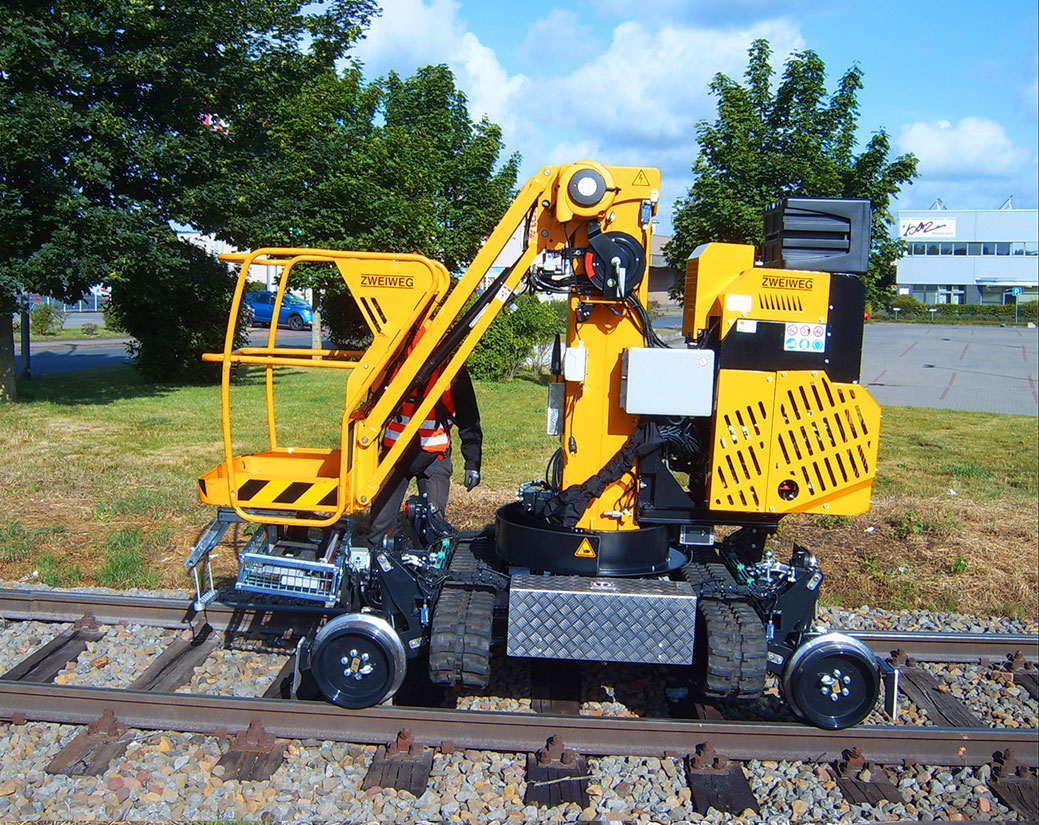

Rail-mounted aerial work platform in accordance with EN 280
Alternative to the rail ladder
Technical data

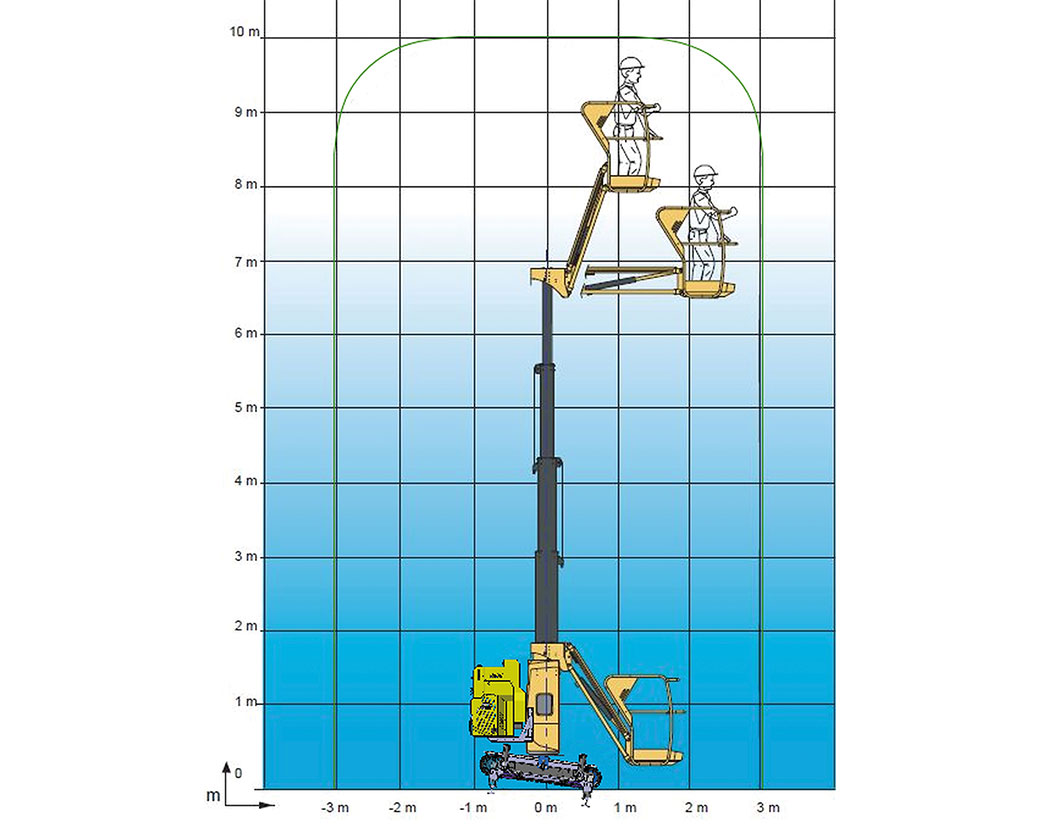

- Working height: 10 m
- Lateral working range up to 3000 mm on both sides
- Basket payload: 200 kg (1 person + tools)
- Pivoting angle: 355°
- total weight: 2700 kg
- Dimensions: L/W/H 2,9 m / 2,5 m / 2,3 m
- Track gauge: 1435 mm
- Speed: max. 19 kph on rail
Equipment:
- Service brake hydromechanical and parking brake acting as a spring-applied multi-disc brake on the drive shaft
- Grounding clamp for CATLAD L to the rail
- 2000 watts socket in the work basket
- Combustion engine with approx. 25 kW
