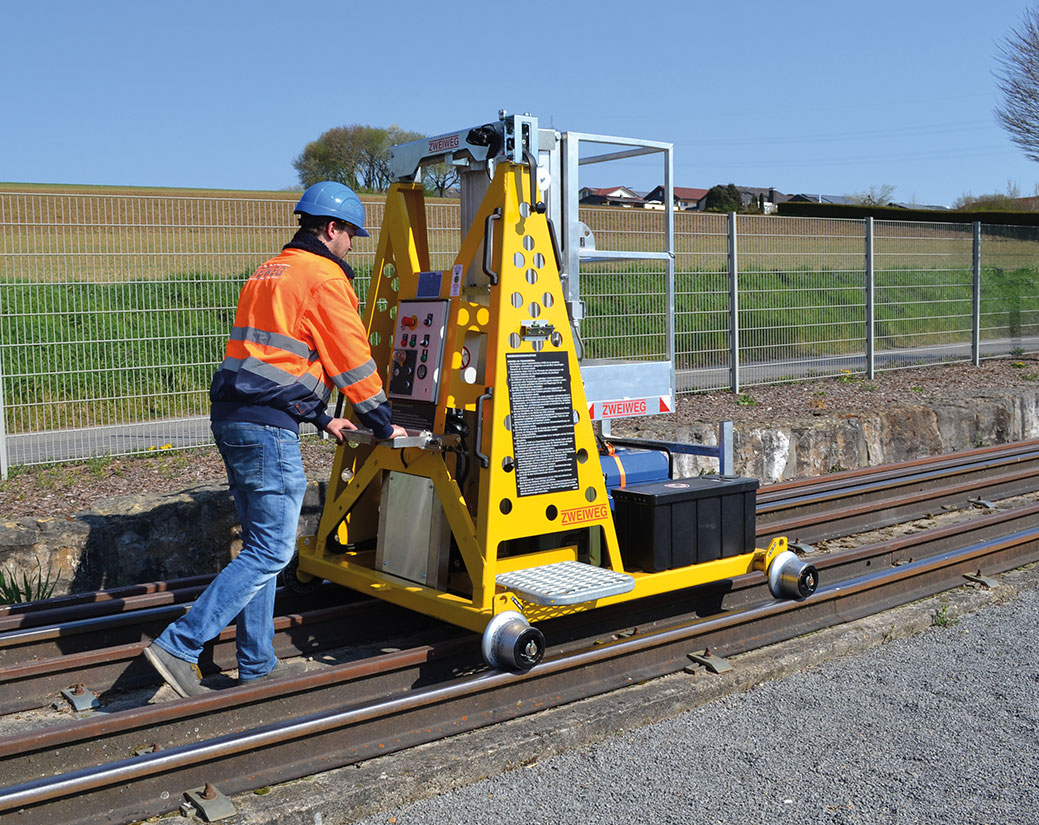

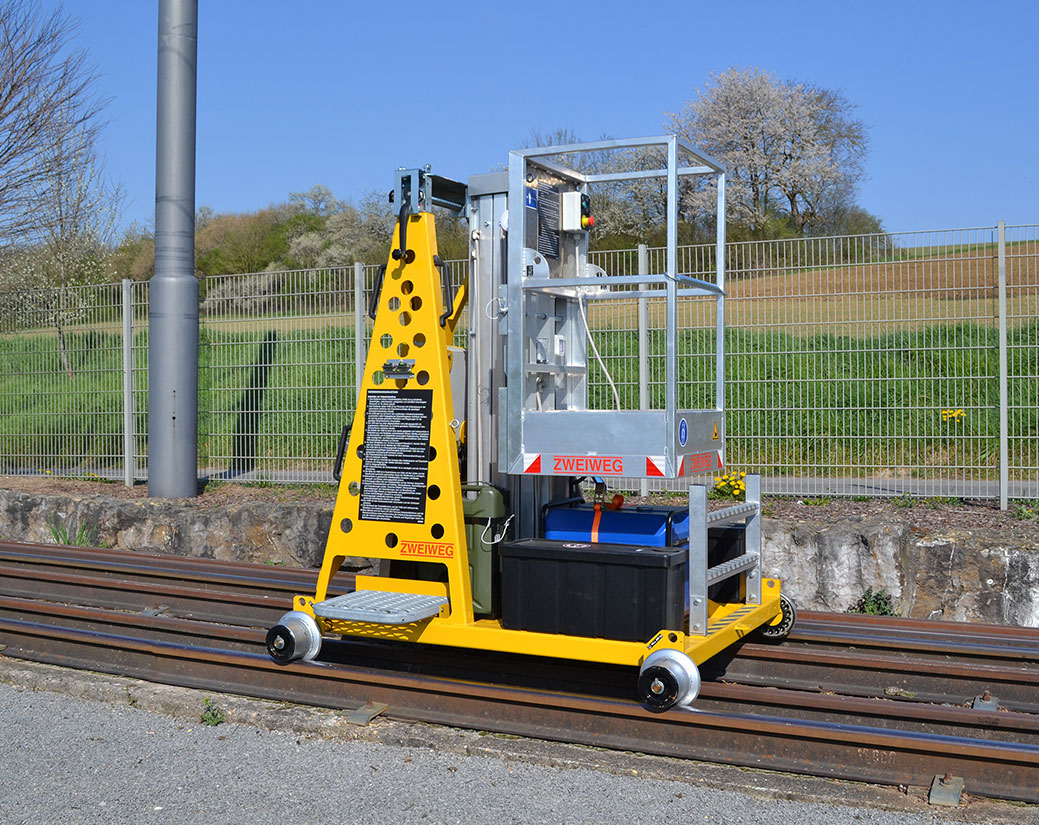

Rail Platform CATLAD S

Rail-mounted aerial work platform in accordance with EN 280
Alternative to the rail ladder

Technical data

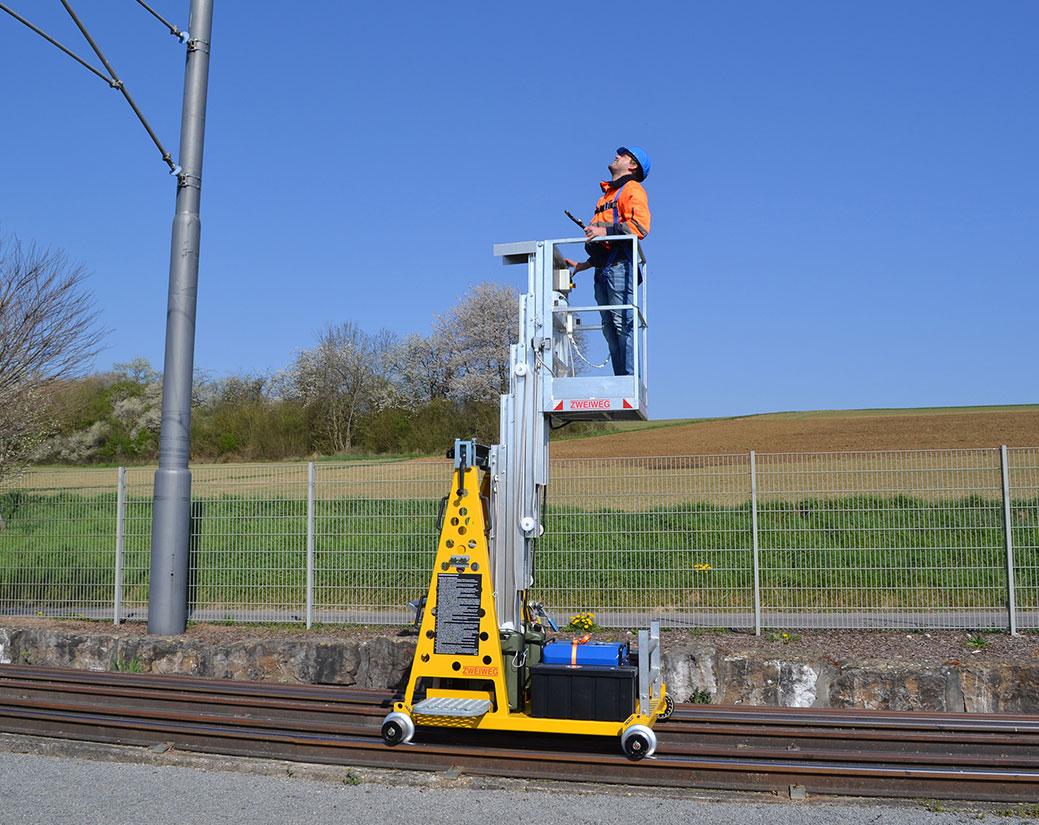

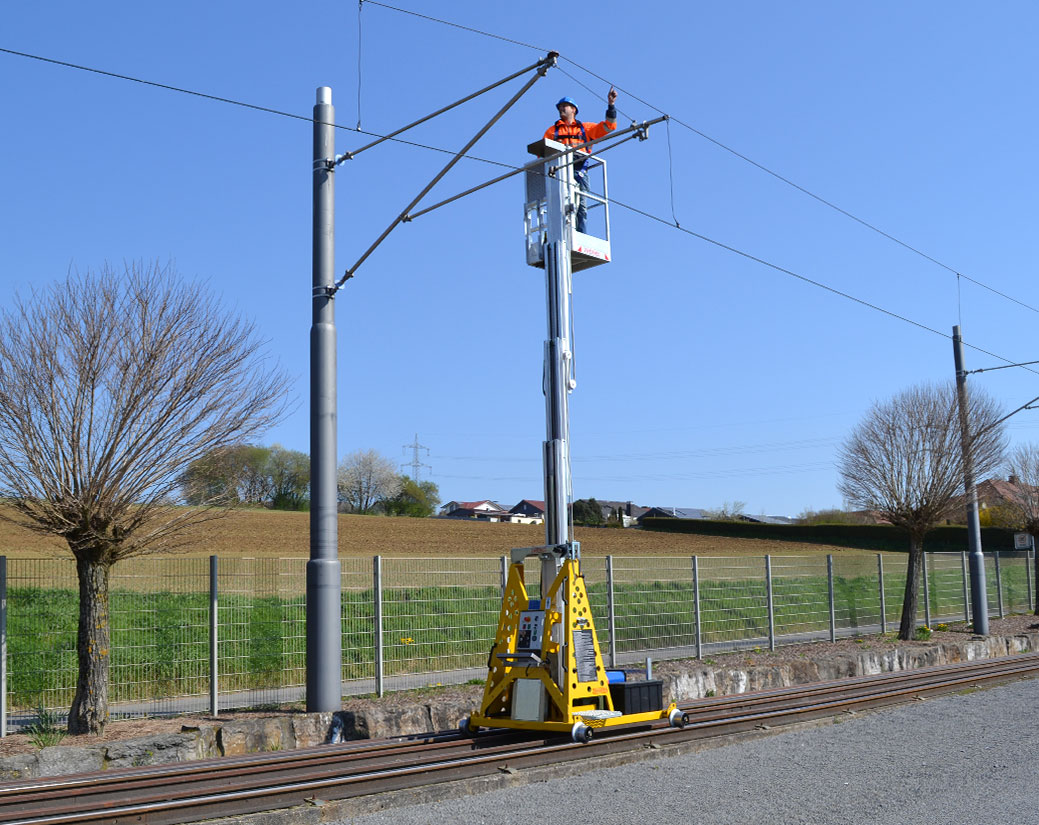

  • Working height: max. 7080 mm
  • Lateral reach up to 1000 mm on both sides
  • Load capacity: 160 kg (1 person, up to 40 kg of tools)

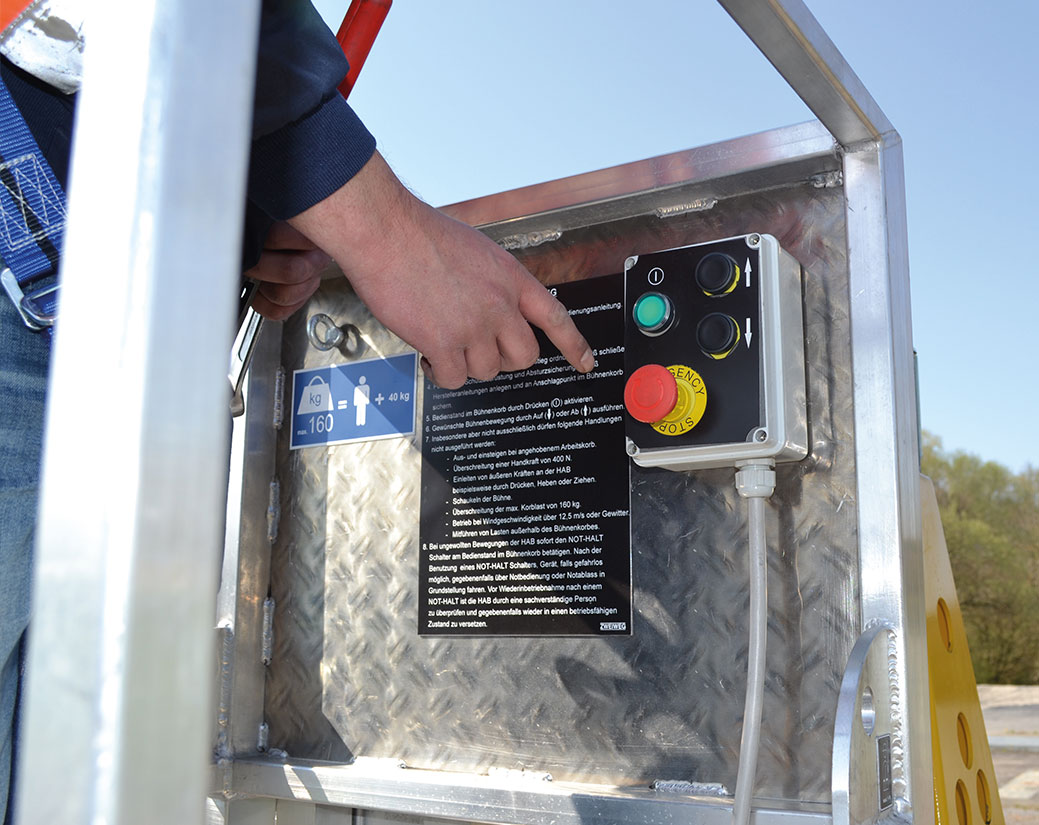

  • Work basket can be moved right – centre – left
  • Weight: Empty weight 625 kg without operating fluids
  • Dimensions: L/W/H 1750/1660/1960 mm
  • Rail gauge: 1435 mm
  • Speed: max. 19 km/h on the rail


Equipment:

  • Parking brake on all four rail wheels
  • Grounding clamp for CATLAD S to rail
  • Socket in work basket 2000 watts
  • Soundproofed 3 kVA petrol generator with electric starter

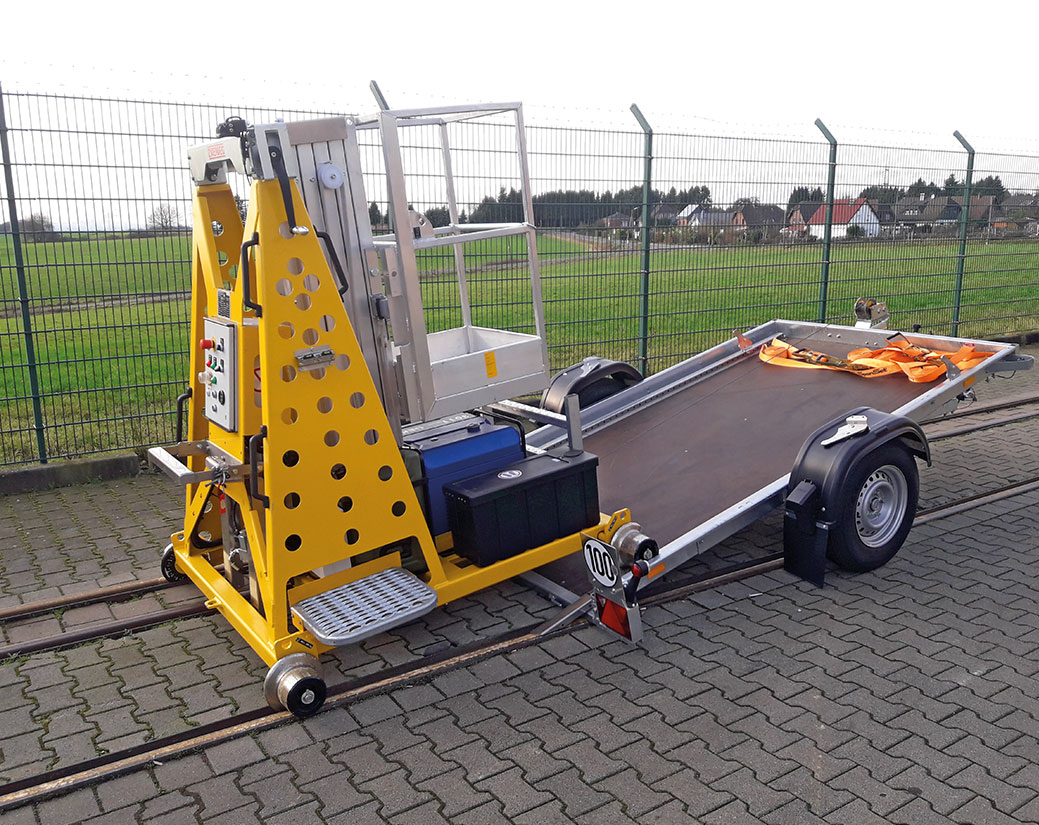

  • Single-axle transport trailer with cable winch, tiltable platform, ball head coupling and overrun brake
