Technical features
- Serial No. ZW3230
- Track gauge 1435 mm
- Permissible total weight 14400 kg
- Payload approx. 8000 kg

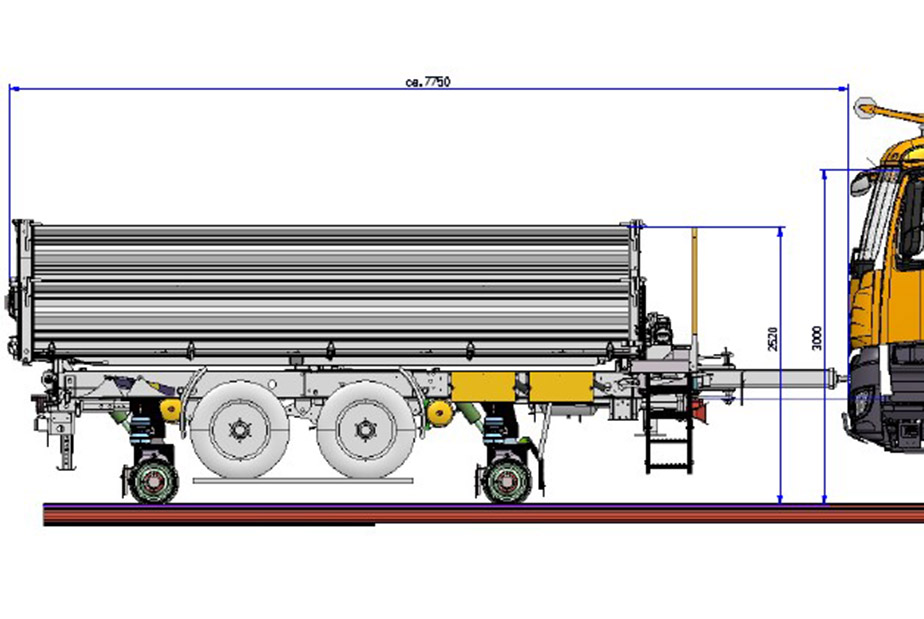

- Loading area dimensions 5500 x 2420 x 600 mm
Equipment

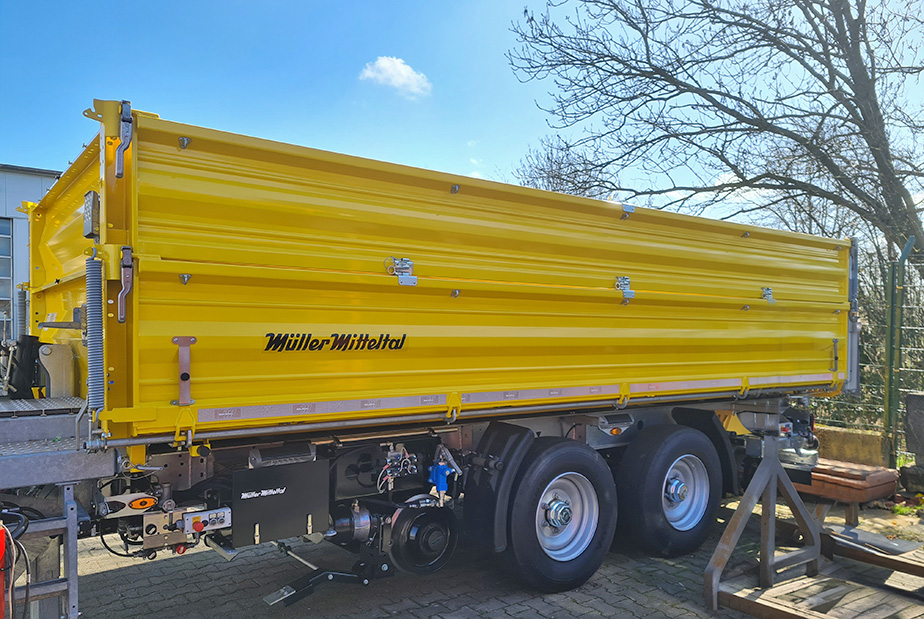

- Müller Mitteltal tandem trailer KA-TA-R 14.4 Masterline
- Three-way tipper with steel loading area and raised side plate
- Painting RAL 1004 golden yellow
- Access ramps
- Rail drive system with two single axles
- Swivel drawbar for trafficability of narrow track curves
- Raising and lowering of the rail drive system independently using its own on-board hydraulics
- 24 V battery system for supplying the e-hydraulics and electrical consumers
- Camera system for the rear area and rerailing process
- 5 ton winch
