Special vehicles and working locomotives

For local transport companies (underground, suburban trains, or trams), the boundary conditions are very individual. In addition to the vehicles for passenger transport, locomotives or special vehicles are required for the construction and maintenance of the infrastructure or for towing broken trains.

The locomotives must be adapted to the specific requirements and admission criteria of the respective transport companies in terms of track width, boundary profile, coupling, train protection and power supply.

Vehicle concepts with different axle sequences and cab arrangements are implemented according to customer requirements.

Energy sources include overhead lines, conductor rails, diesel engines or accumulators. Multi-system vehicles with combinations of energy sources can also be realized.

The power transmission of the vehicles can be either hydrodynamic, hydrostatic, or electric.

The photos on the right show some examples of delivered vehicles.


  • Metro Tunis
  • MRT Singapur
  • Metro Medellin
  • Metro Athen
  • Berliner Verkehrsbetriebe
  • Stuttgarter Straßenbahnen
  • Münchner Verkehrsgesellschaft
  • Hamburger Hochbahn
  • Kölner Verkehrsbetriebe

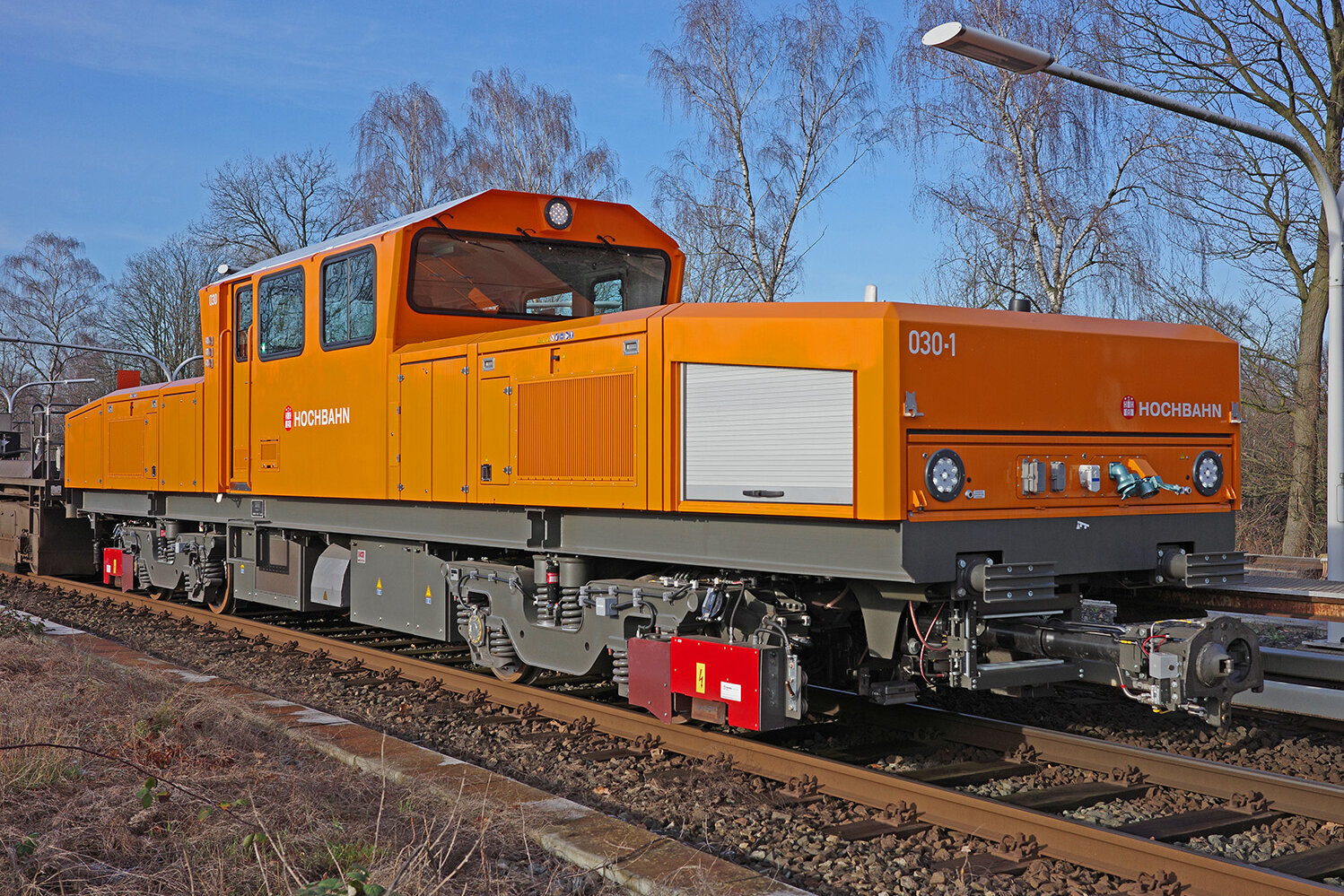

  • AL2 Hamburger Hochbahn

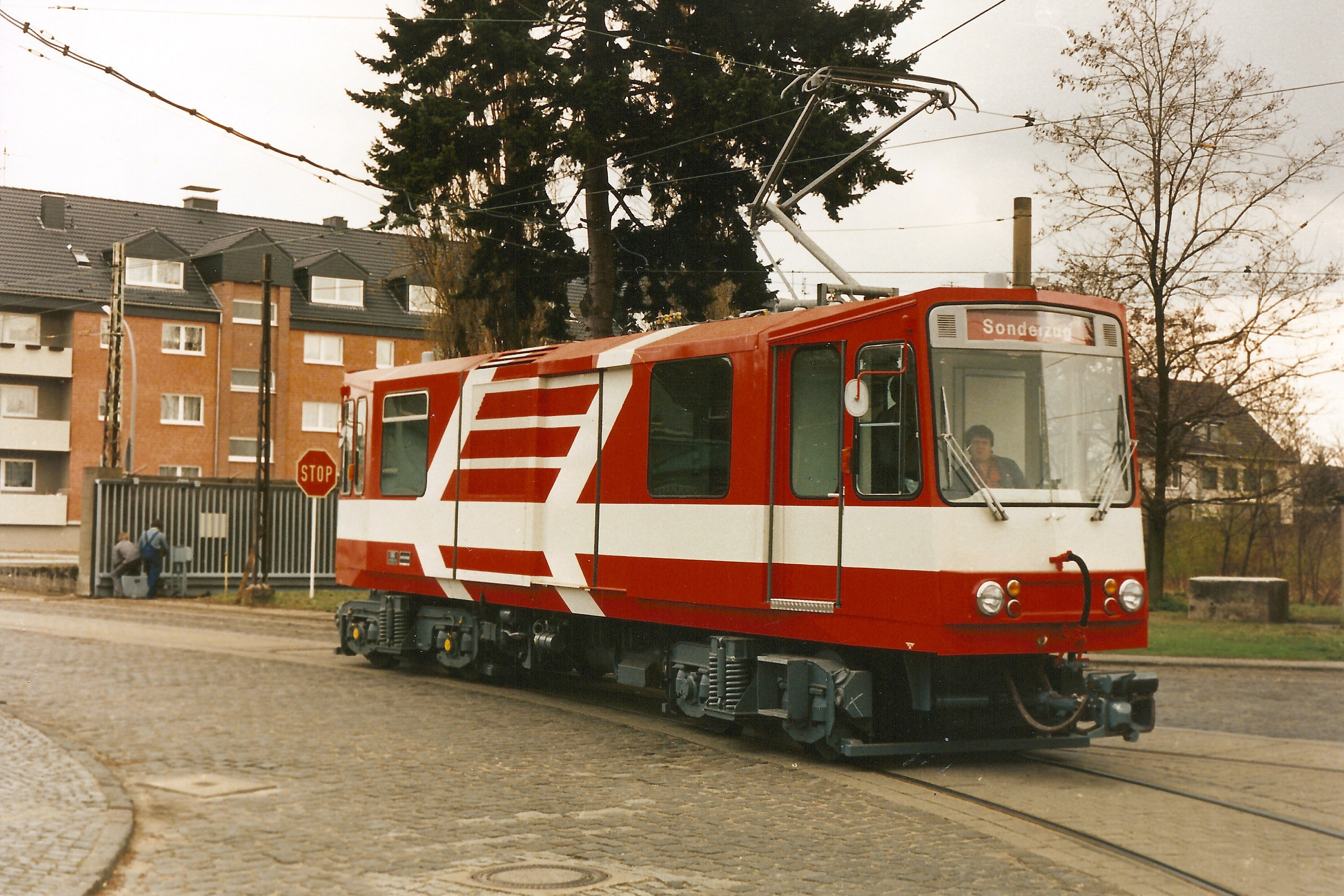

  • Schleif-Steuerwagen.jpg

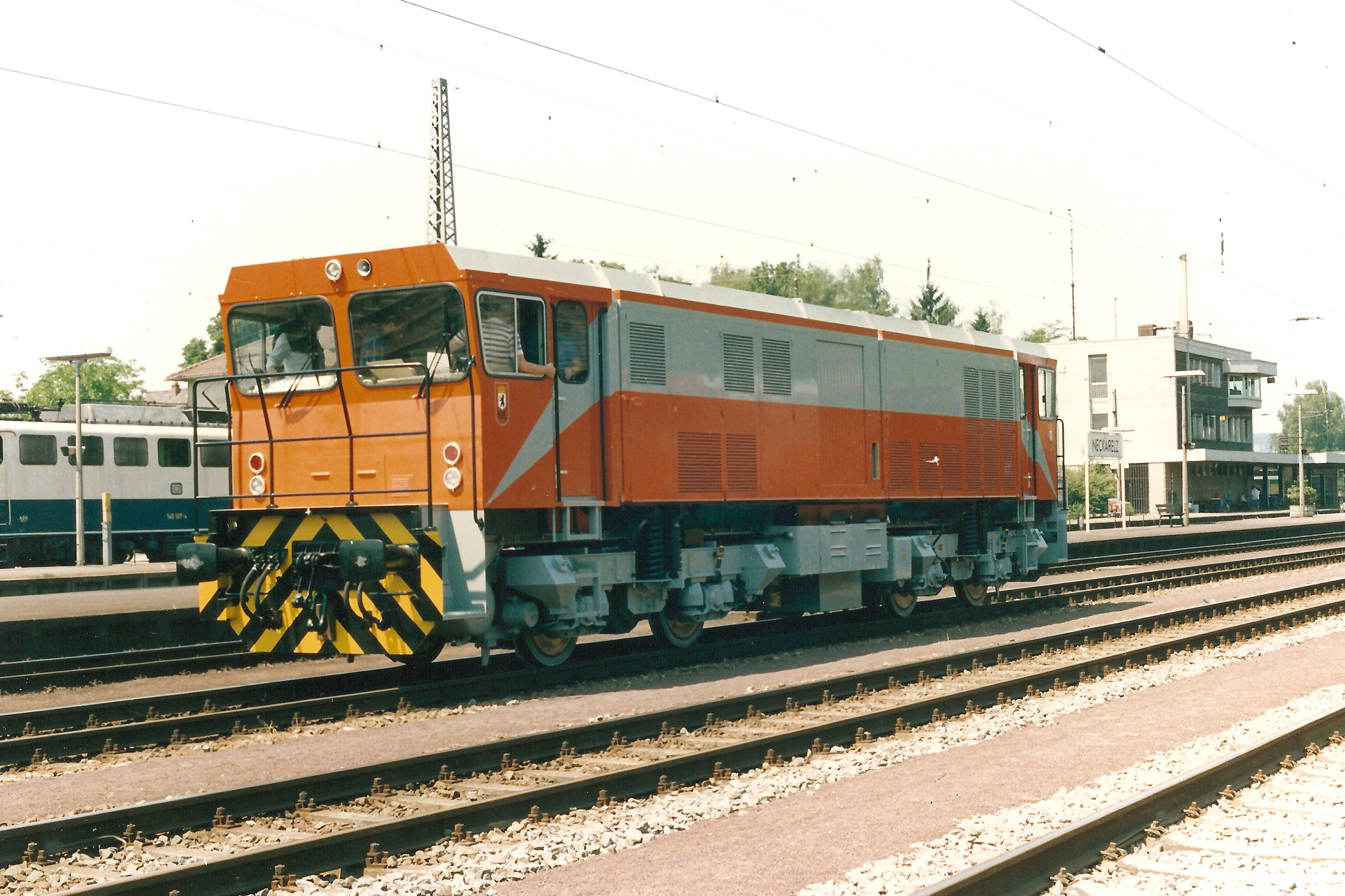

  • GMEINDER-LOKOMOTIVEN-Sonderfahrzeug.jpg

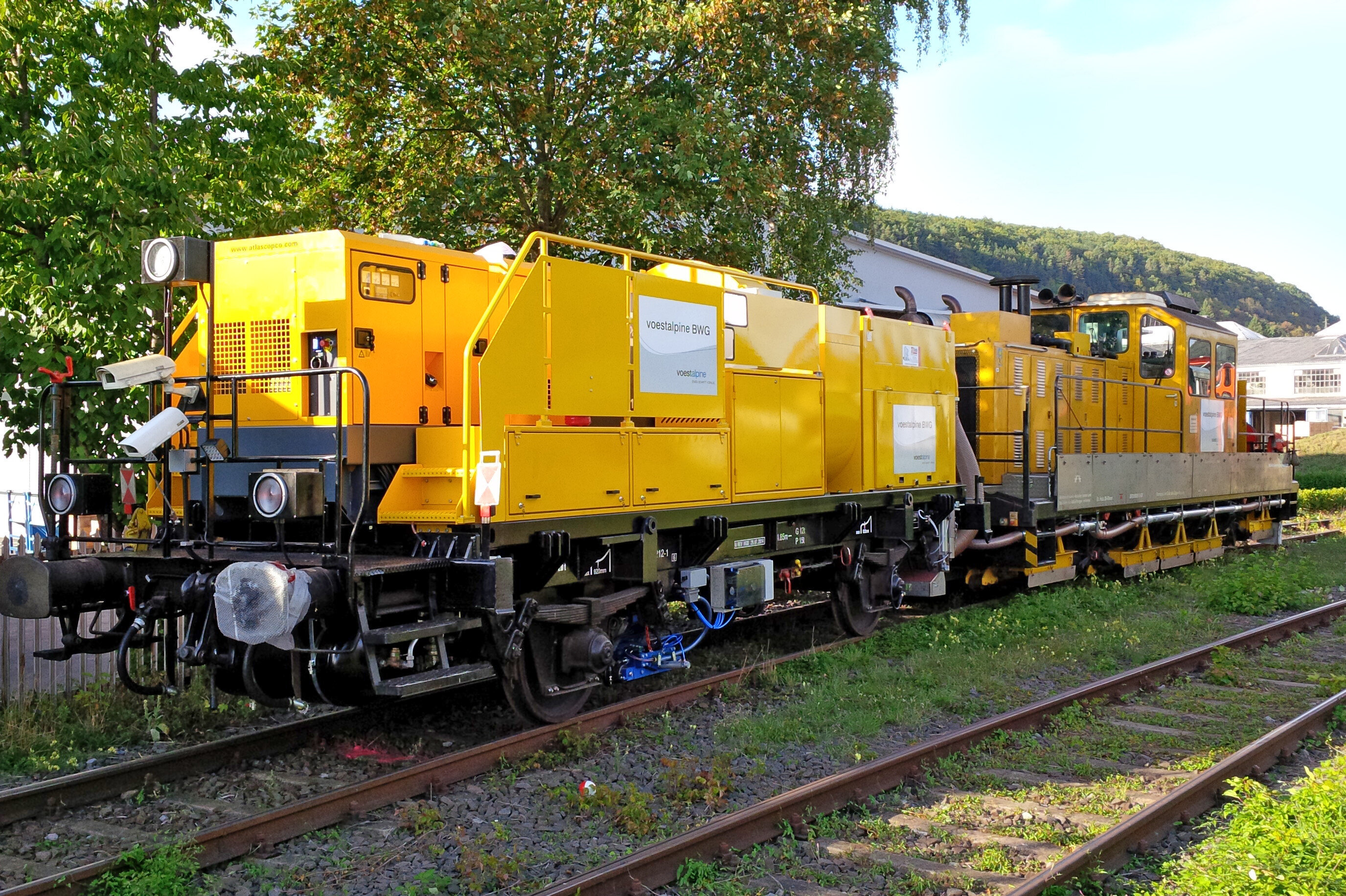

  • Staubsaugwagen-Voest-BWG.jpg

AL45 BB Multi-system locomotive

The AL45 BB is a robust working locomotive, its distinguishing feature is the high tractive force at low tare weight. This allows the multiple application for the speci¬fic needs of transport companies, as they are reliant on a light construction due to their network structure with bridges and elevated rail lines. The modern locomotive control system ensures its regulated slow movement (2 to 10 km/h). The electric power transmission by four independently controlled drive motors leads to the optimum use of the adhesion and simultaneously the utilisation of different energy sources like battery and power rail.

  • Length over buffers 15740 mm
  • Width 2450 mm / Height 3416 mm
  • Total weight 40 t ± 3 %
  • Wheelset load 10 t ± 3 %
  • Track gauge 1435 mm
  • Axle arrangement Bo‘Bo‘
  • Power at wheel 4 x 110 kW
  • Battery capacity 288 kWh
  • Starting tractive eff ort 136 kN
  • Max. speed 40 kph
  • AL2 Hamburger Hochbahn
